Transcutaneous Electrical Nerve Stimulation; or TENS; is a non-invasive; drug-free pain relief method not a cure for any physiological ailment. It uses small electrical impulses sent through the skin to stimulate the nerves in the an affected area of the body to modify your pain perception. For most users; TENS unit is very effective in reducing; or eliminating pain; allowing for a return to normal; everyday activity. | Electrical Muscle Stimulation helps by increasing blood flow to muscles; increasing range of motion; increasing muscle strength; as well as enhancing muscle endurance. Muscle Stimulators have pain management attributes in helping muscle-related pain; such as spastic muscle; sore muscles; or tight muscles. | Constant Pulse Massage Modes can steadily output current and reduce the stimulation caused by pulse instability. This ensures the elderly or sensitive people will enjoy the NURSAL Tens unit. |
Make sure the lead wire is connected to the ems tens machine A/B port; Make sure the pair of replacement pads (not only 1 pad) are pasted on the massage area well; Make sure you adjust the intensity of the corresponding channel (when the channel A bar on the screen is flashing; that means you are adjusting channel A);

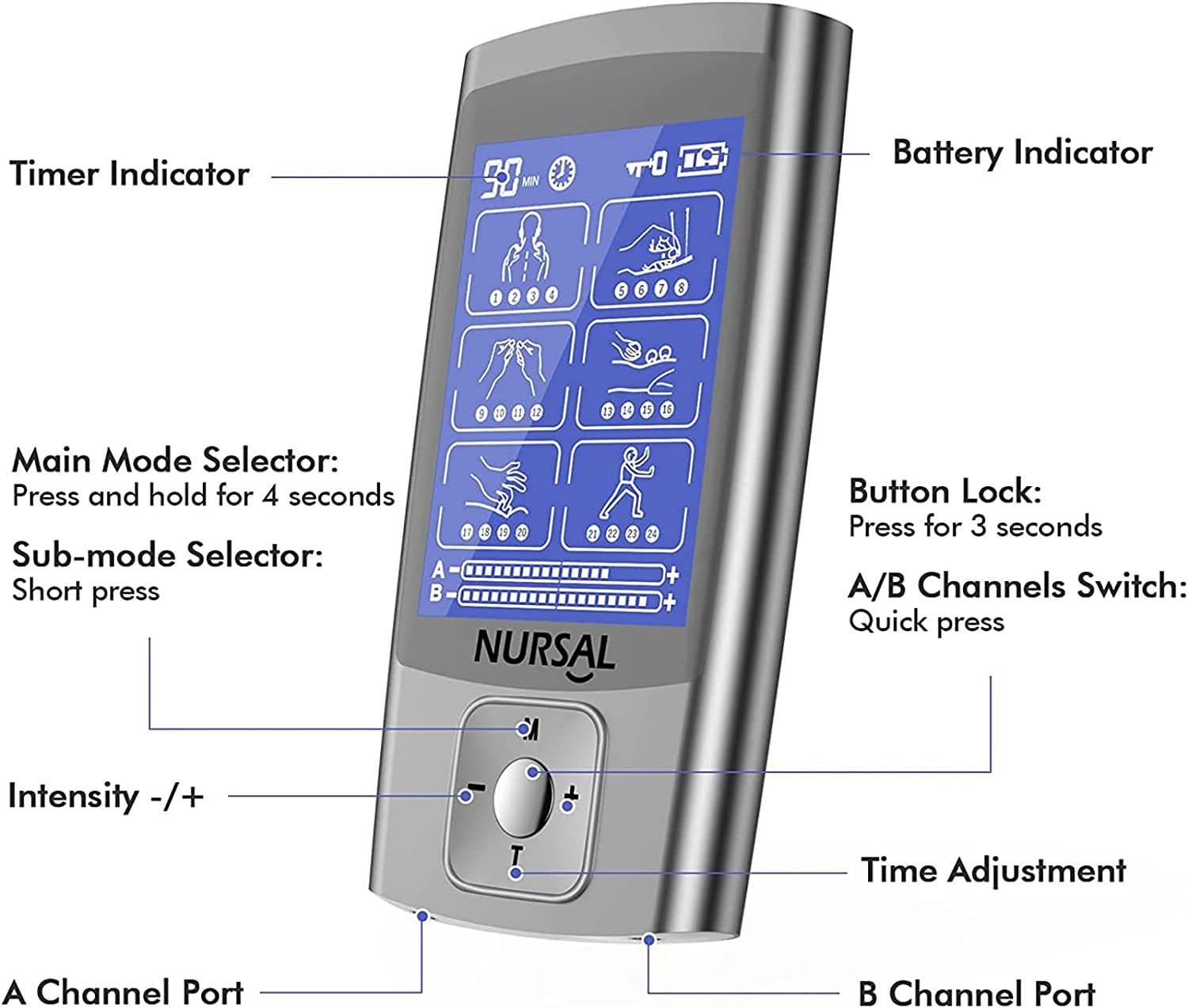

| Long press 'M' and hold about 4 seconds to switch between the 6 main modes.Quickly press to switch between the 4 sub-modes in a specific main mode.
| 2pcs*1/2 and 1pcs*1/4 lead wires accessories contained in the package.When you use 1/2 cable; make sure both white snaps are connected to the pads and attached to the skin before adjusting the intensity.When you use 1/4 cable; make sure there is a blue and a white snap (blue and white snap are from the same wire group) both connected to the pads and attached to the skin before adjusting the intensity or you could use 4 pads at the same time. |
Please consult with your physician before purchasing or using this unit if you experience: any acute disease; tumor; infectious disease; pregnancy; heart disease; high fever; abnormal blood pressure; lack of skin sensation or an abnormal skin condition; or any condition requiring the active supervision of a physician.
The lifespan of NURSAL electrodes might depend on skin condition; frequency of cleaning; and storage. Some tips to use the 10s unit muscle stimulator pads longer;
Use the stim machine pads on dry; flat areas with no perspiration or oil.If you wash pulse massager pads under the tap; please let them dry naturally.Make sure to apply pair of latex-free self-adhesive electrotherapy pads to your skin; if you only use one pad; it won’t perform efficiently.
Pulse Rate | from 0 to 60 Hz |
Pulse Width | from 0 to 224µs microseconds |
Pulse Amplitude | 0 to 50 Vpp |
Channel | dual; isolated mode and intensity between channels |
Memory Function | using 1 mode for more than 5 seconds; the tens device shows the mode before turning off |
Modes | kneading; acupuncture; beat; cupping; scraping; tai chi massage (each main modes consist of 4 sub-modes; total 24 modes) |
Timer | 15; 30; 45; 60 ; 75; 90 minutes |
Dimensions | 3.70" x 1.98" x 0.43" |
Product Weight | 0.13 lbs (with battery) |
Power Supply | 3.7V\180mAh lithium-ion battery or AC 110V-240V / DC5-5V/500mA |
